The de Havilland Mosquito is often lauded for its impressive capabilities, particularly when compared to the B-17 Flying Fortress. However, claims that the Mosquito could carry the same bomb load to Berlin as the B-17 are not as straightforward as they seem. This blog delves into the details of each aircraft’s specifications, real-world performance, and the origins of this myth.

Understanding Endurance and Combat Radius

The endurance and combat radius of an aircraft are critical factors in mission planning and execution. For both the B-17 and the Mosquito, these elements significantly influenced their operational capabilities.

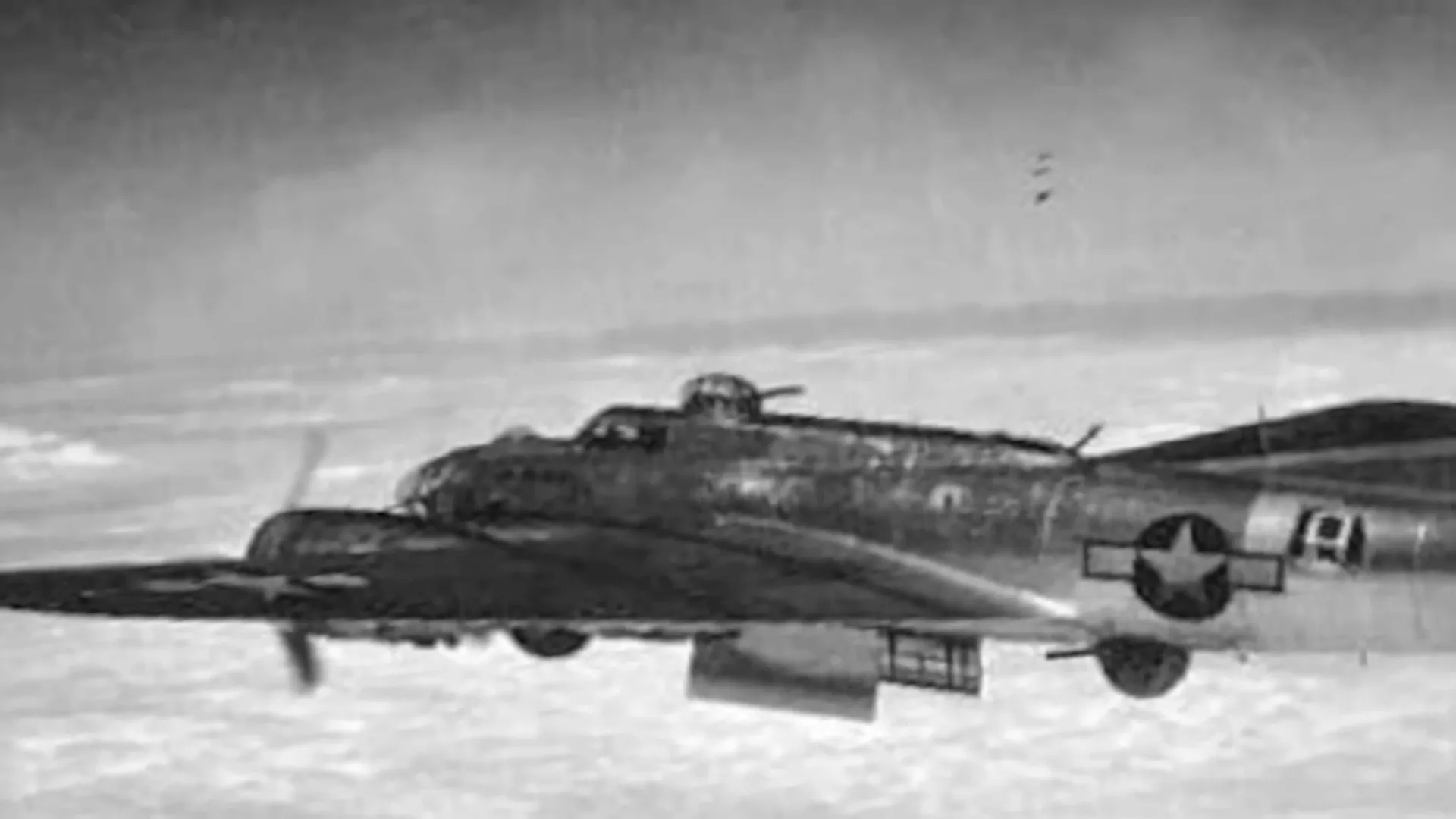

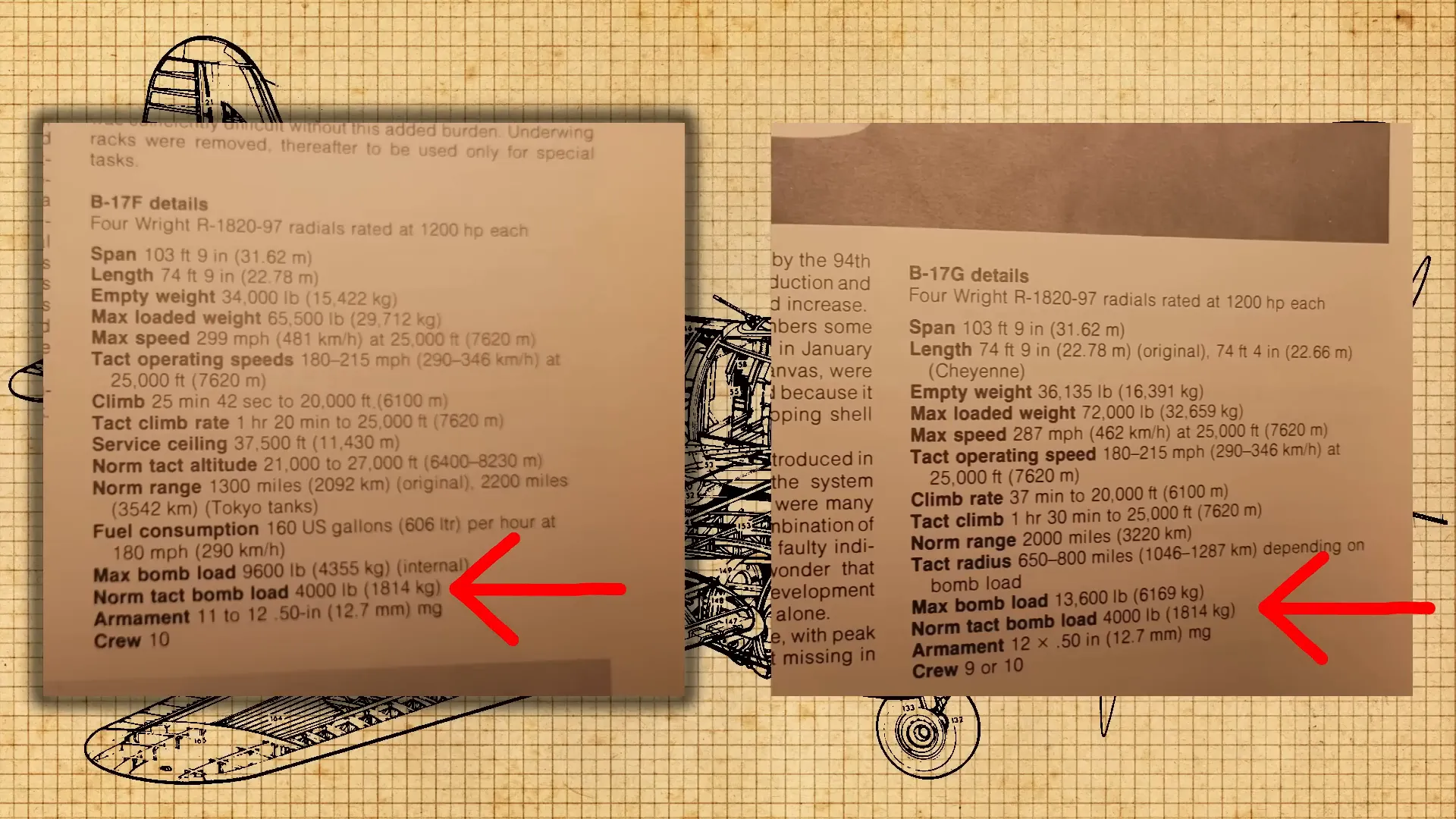

B-17 Specifications

The B-17, specifically the F and G models, boasted an impressive fuel capacity of 2,780 US gallons. This included outboard Tokyo tanks, which contributed significantly to its weight, approximately 16,680 pounds. The aircraft’s empty weight was around 35,972 pounds, while its basic weight, including essential flight components, was about 37,672 pounds.

When fully loaded, the B-17 reached a combat weight of 41,000 pounds, with a maximum takeoff weight of 67,860 pounds for the G model. This configuration allowed for a bomb load capacity of approximately 7,000 to 12,000 pounds, depending on the mission parameters.

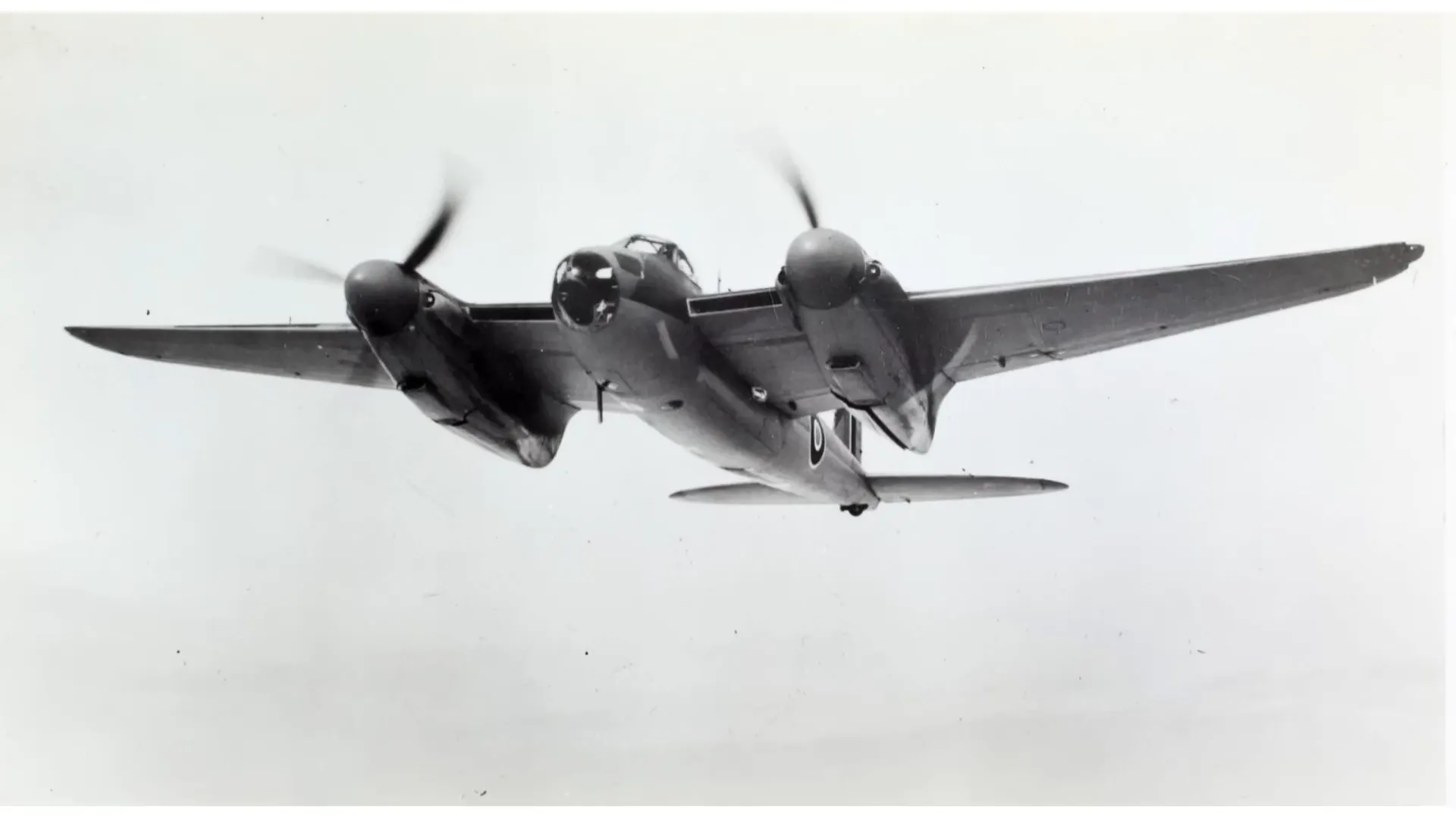

Mosquito Specifications

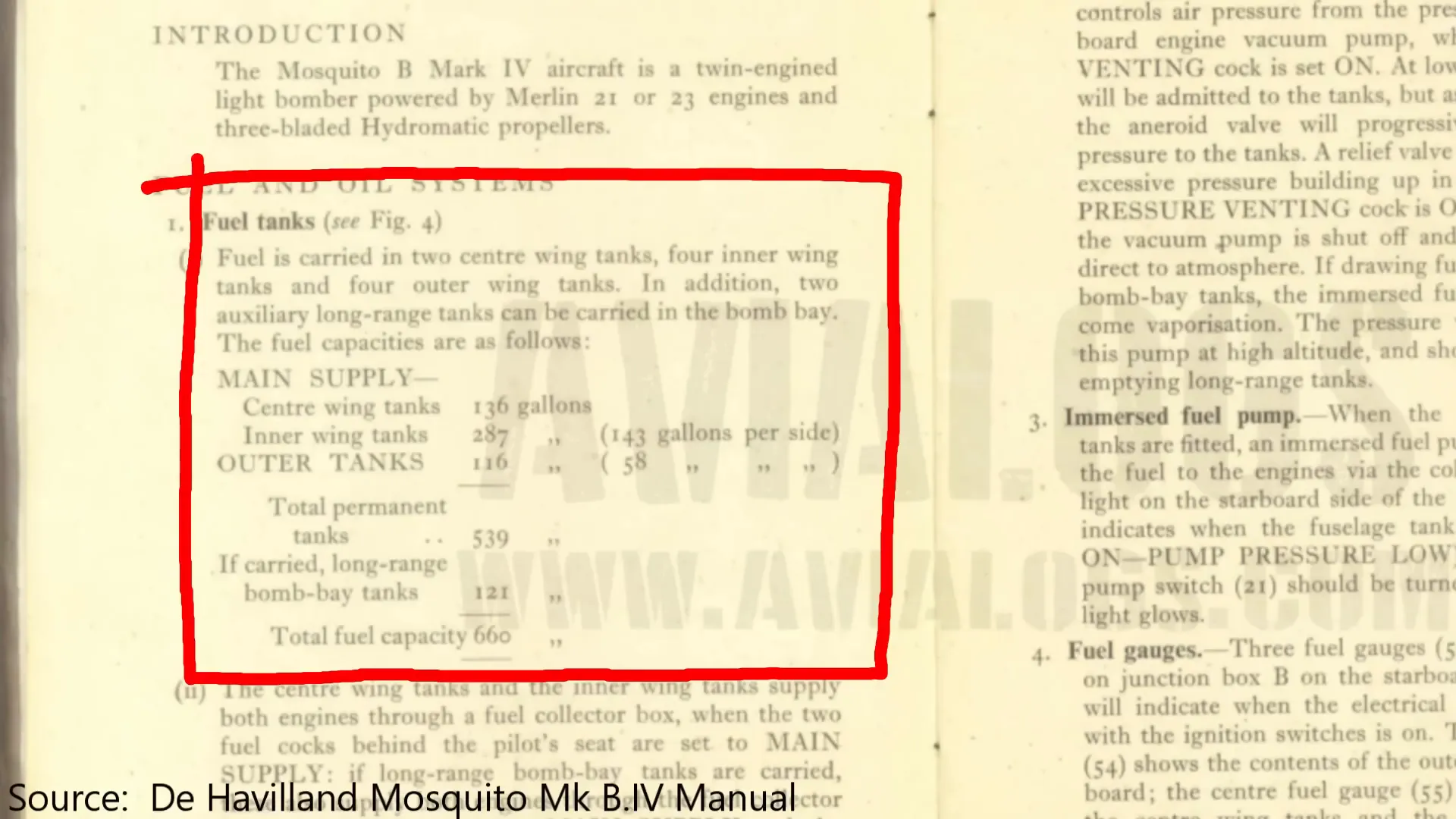

In contrast, the de Havilland Mosquito had a more modest fuel load. It featured an internal fuel capacity of 423 imperial gallons, which equates to about 508 US gallons. This capacity could be supplemented with external drop tanks, increasing its operational range but also its weight.

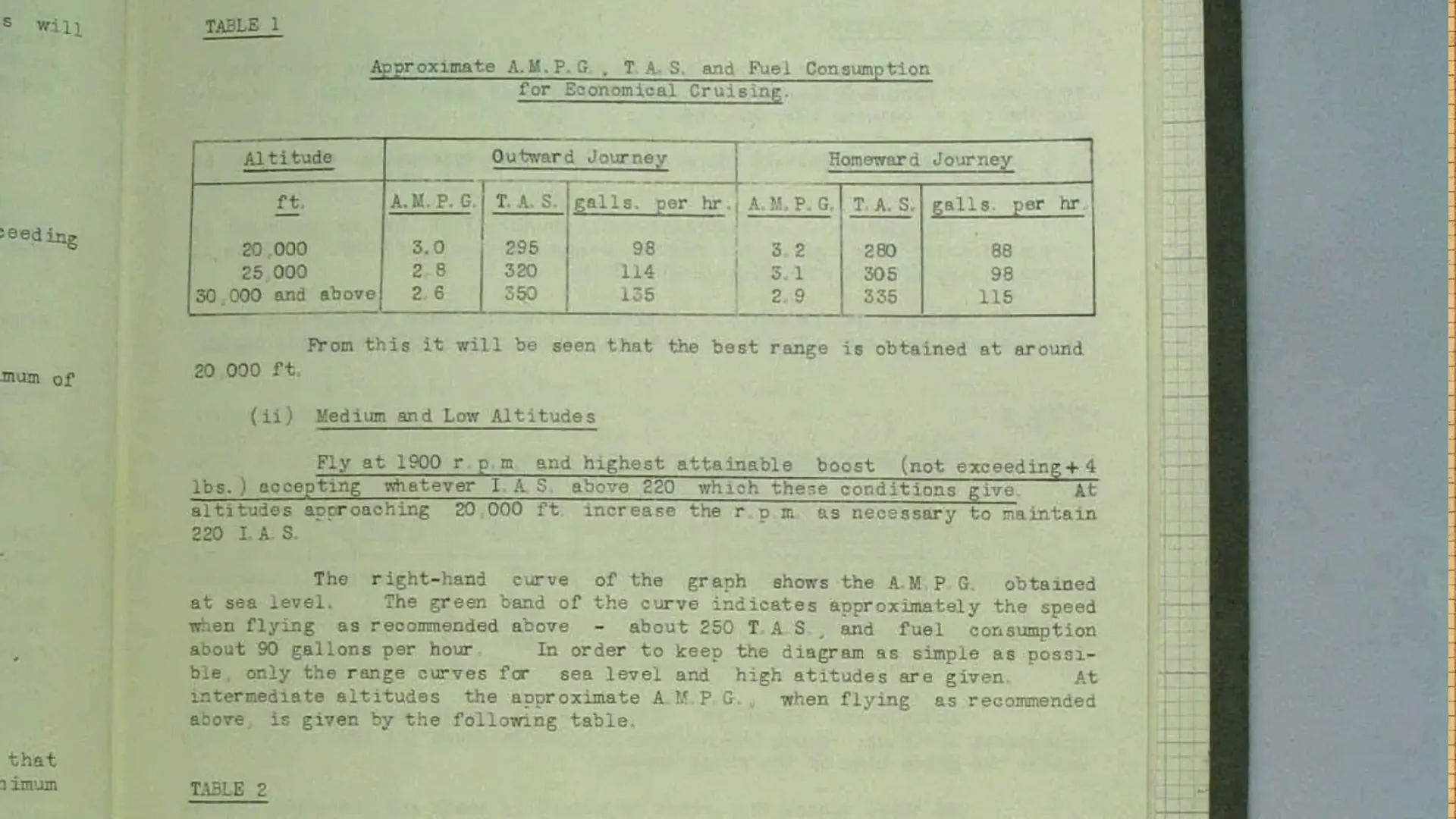

For endurance, the Mosquito required specific operational settings to maximize its range. It was recommended that pilots operate at a cruising speed of around 220 indicated air speed, which allowed for optimal fuel consumption and distance coverage.

Comparative Analysis of Bomb Loads

Understanding the bomb loads of both aircraft is essential to comparing their effectiveness in combat. The B-17 had multiple bomb configurations, allowing it to adapt to various mission requirements.

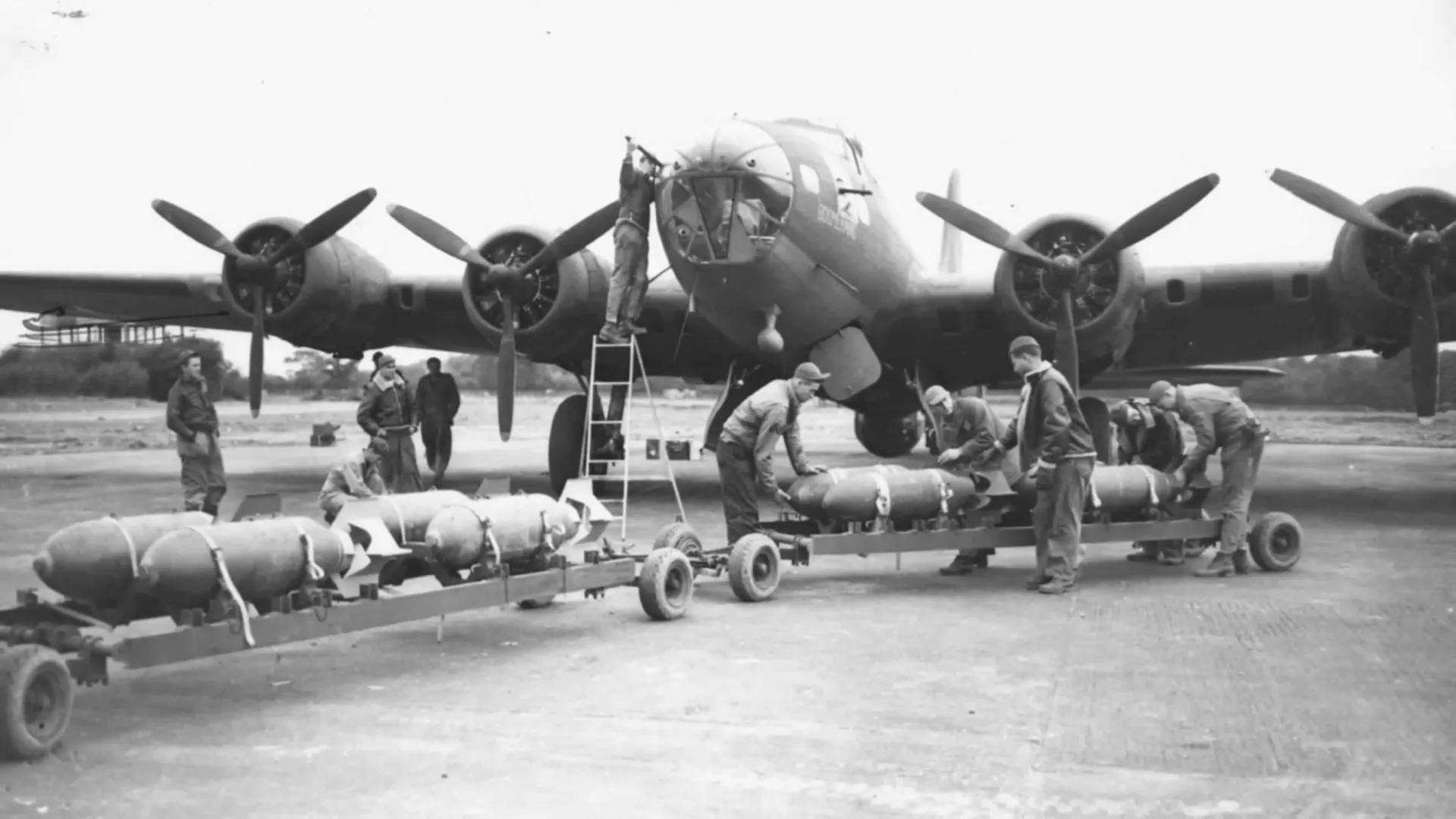

B-17 Bomb Load Configurations

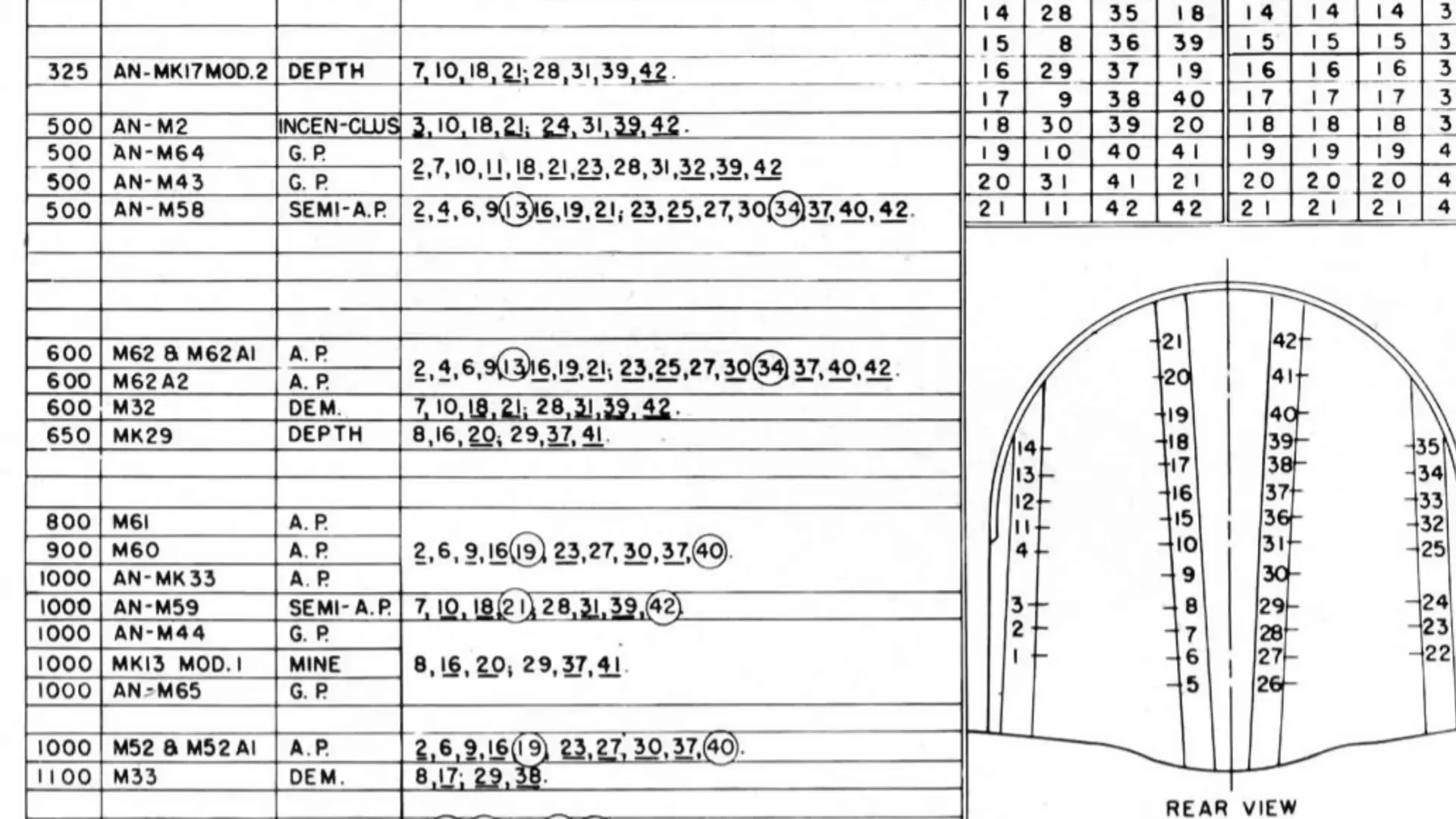

The B-17 had 42 stations for bomb attachment, which could be sequenced for dropping by the bombardier. Depending on the type of bombs used, the actual number of bomb stations available varied. The largest internal bomb that could be carried was the 2,000-pound AN M34 or AN M66, while smaller 100-pound bombs were also an option.

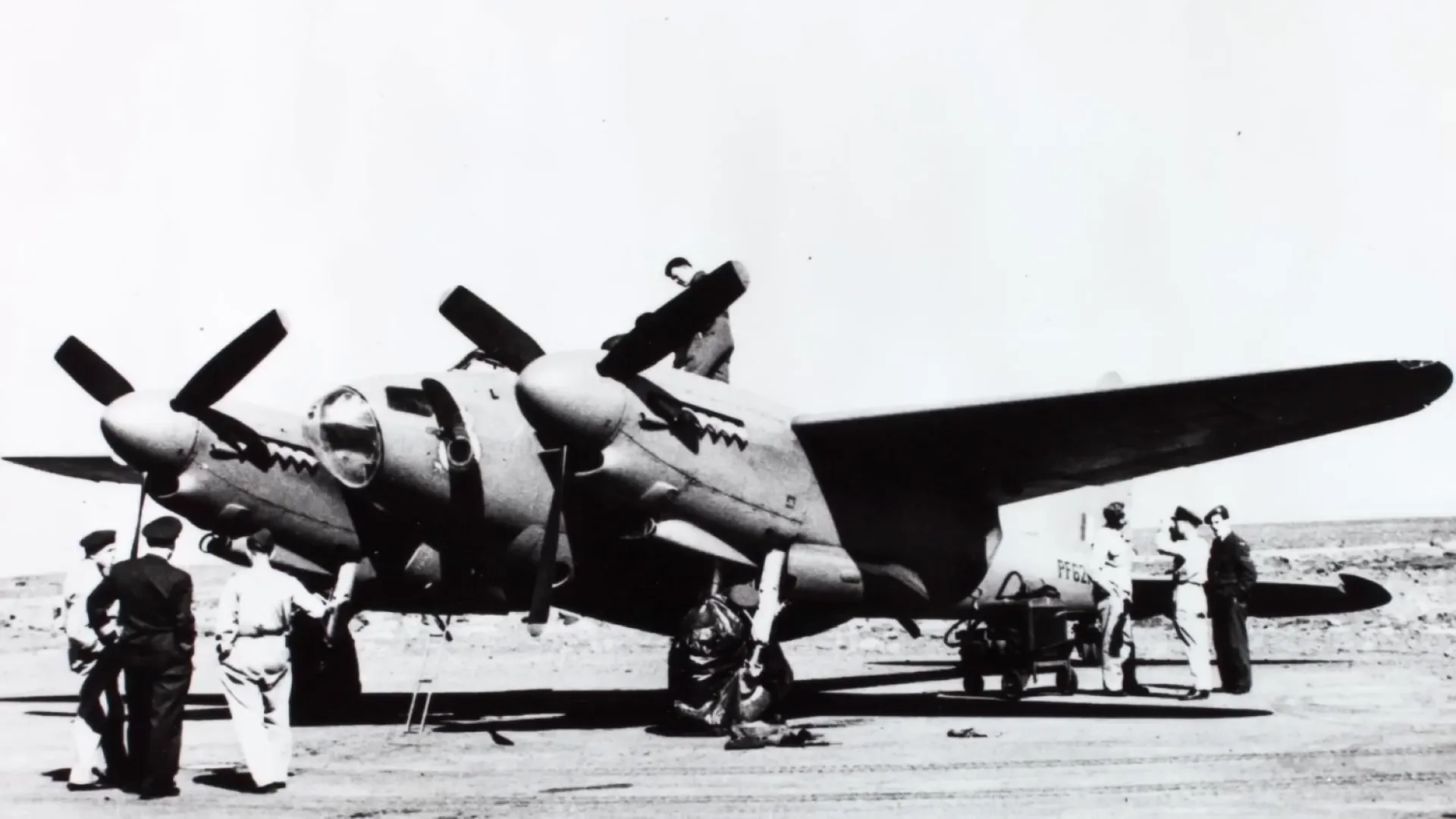

Mosquito Bomb Load Limitations

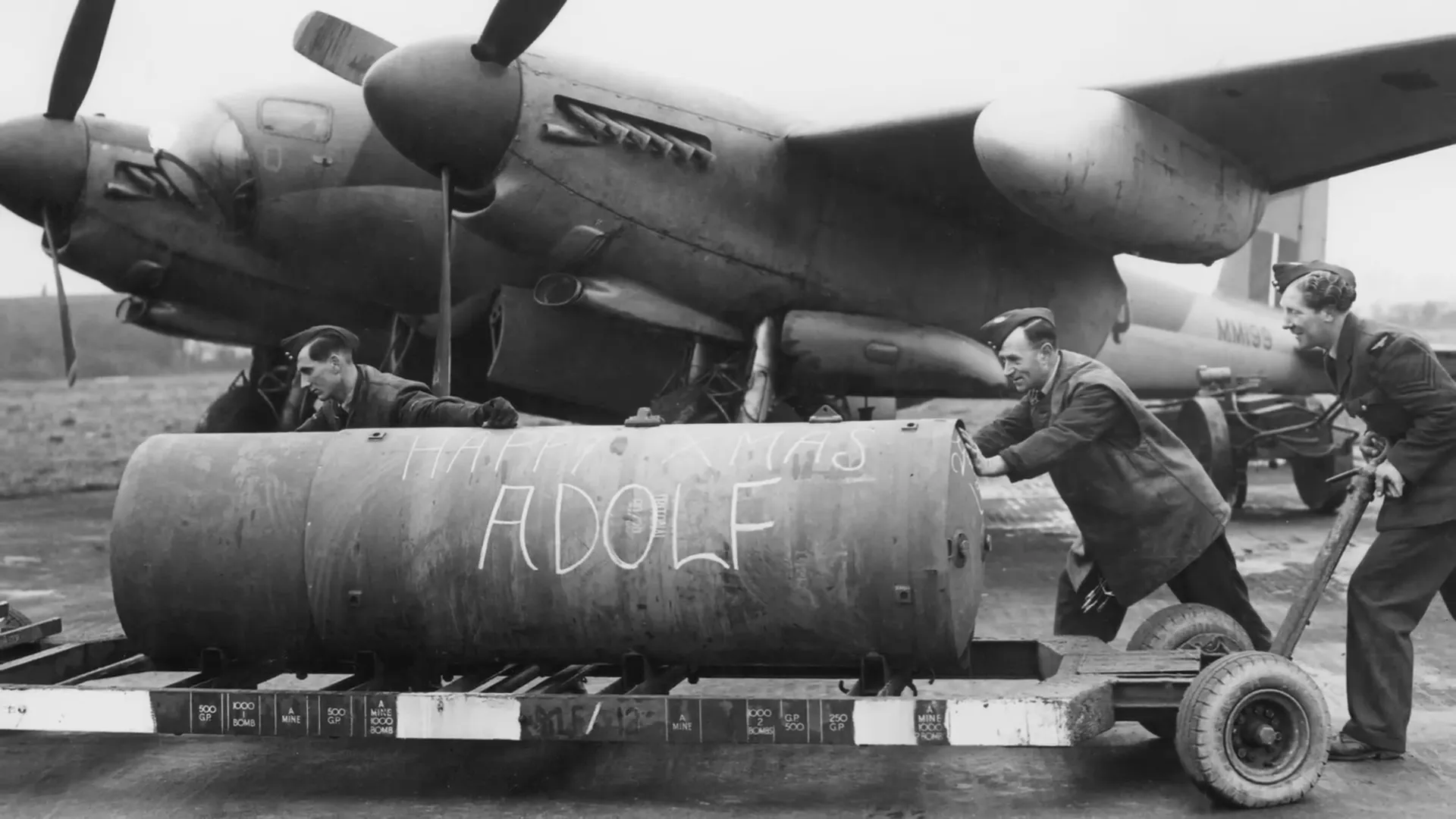

The Mosquito’s bomb load capabilities were significantly different. Initially designed to carry four 500-pound bombs, its maximum bomb load was around 2,000 pounds for light bombing missions. Some later models were modified to carry up to 4,000 pounds, but this was not the standard for the majority of Mosquito sorties.

Real-Life Bomb Load Results of the B-17

Analyzing real-life data from B-17 missions provides insight into its operational capabilities and effectiveness. A comprehensive review of 684 individual raids highlighted the average bomb load dropped by B-17s during missions.

Bomb Load Averages

The average bomb load across all recorded sorties was approximately 4,510 pounds, with a median of 4,547 pounds. This data suggests that a significant majority of B-17 missions involved bomb loads exceeding 4,000 pounds.

Monthly Trends in Bomb Loads

Data analysis indicated a noticeable trend in increasing bomb loads as the Eighth Air Force expanded its operations. The proportion of sorties with bomb loads exceeding 5,000 pounds rose significantly over time.

Interestingly, certain months recorded average bomb loads below 4,000 pounds, suggesting variability in mission parameters and target requirements.

Could the Mosquito Replace the B-17?

The hypothesis of the Mosquito replacing the B-17 raises several operational considerations. While the Mosquito had advantages in speed and evasion, its bomb load capacity posed a significant limitation.

Operational Considerations

If tasked with the same operational role as the B-17, the Mosquito force would have needed to be significantly larger to achieve equivalent bomb tonnage. Estimates suggest that a Mosquito force would need to be approximately 75% larger than the B-17 force for comparable effectiveness.

Strategic Implications

Adopting a night bombing strategy with the Mosquito could have shifted the dynamics of air warfare. The potential for greater evasion by flying at night was countered by the evolving interception techniques developed by the Luftwaffe.

The success of Mosquito operations would depend heavily on the element of surprise and the ability to adapt to enemy tactics.

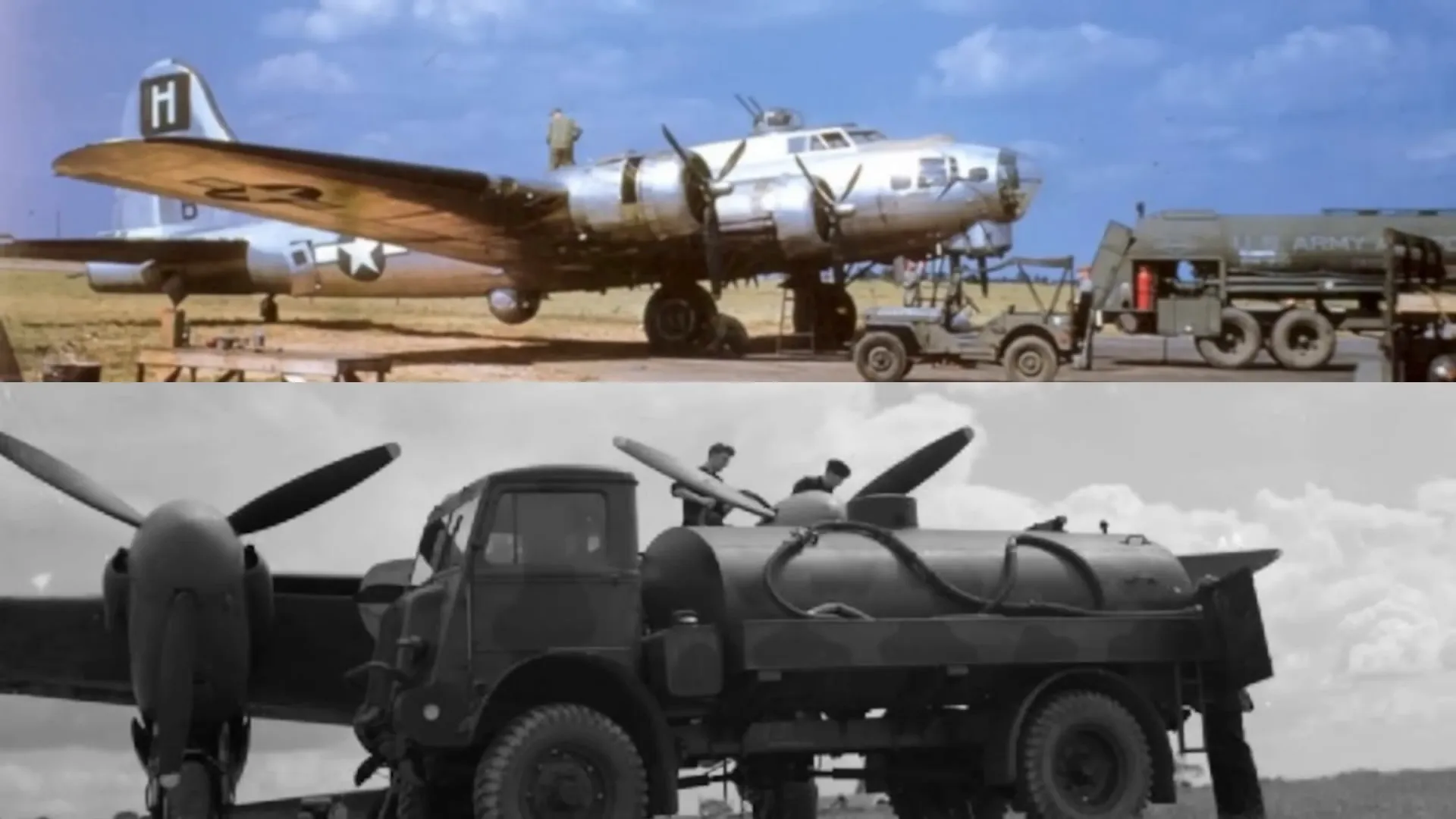

The Role of Fuel Capacity in Performance

Fuel capacity plays a crucial role in determining an aircraft’s operational range and mission effectiveness. The B-17’s larger fuel capacity allowed it to fly longer missions, carrying heavier bomb loads, while the Mosquito’s smaller fuel capacity limited its operational range.

Fuel Efficiency and Range

The B-17’s design allowed for extended range missions, making it capable of reaching targets deep within enemy territory. In contrast, the Mosquito’s fuel efficiency was optimized for shorter, more agile missions, which limited its effectiveness in sustained bombing campaigns.

Conclusion of Analysis

Through this analysis, it becomes clear that while the Mosquito had impressive capabilities, it could not effectively replace the B-17 in its primary bombing role. The differences in bomb load capacity, fuel efficiency, and operational requirements highlight the unique contributions of each aircraft to the Allied war effort.

Impact of Aircraft Variants on Performance

The performance of an aircraft is often influenced by its specific variant. In the case of the Mosquito, multiple variants were designed, each with unique attributes that affected operational capabilities.

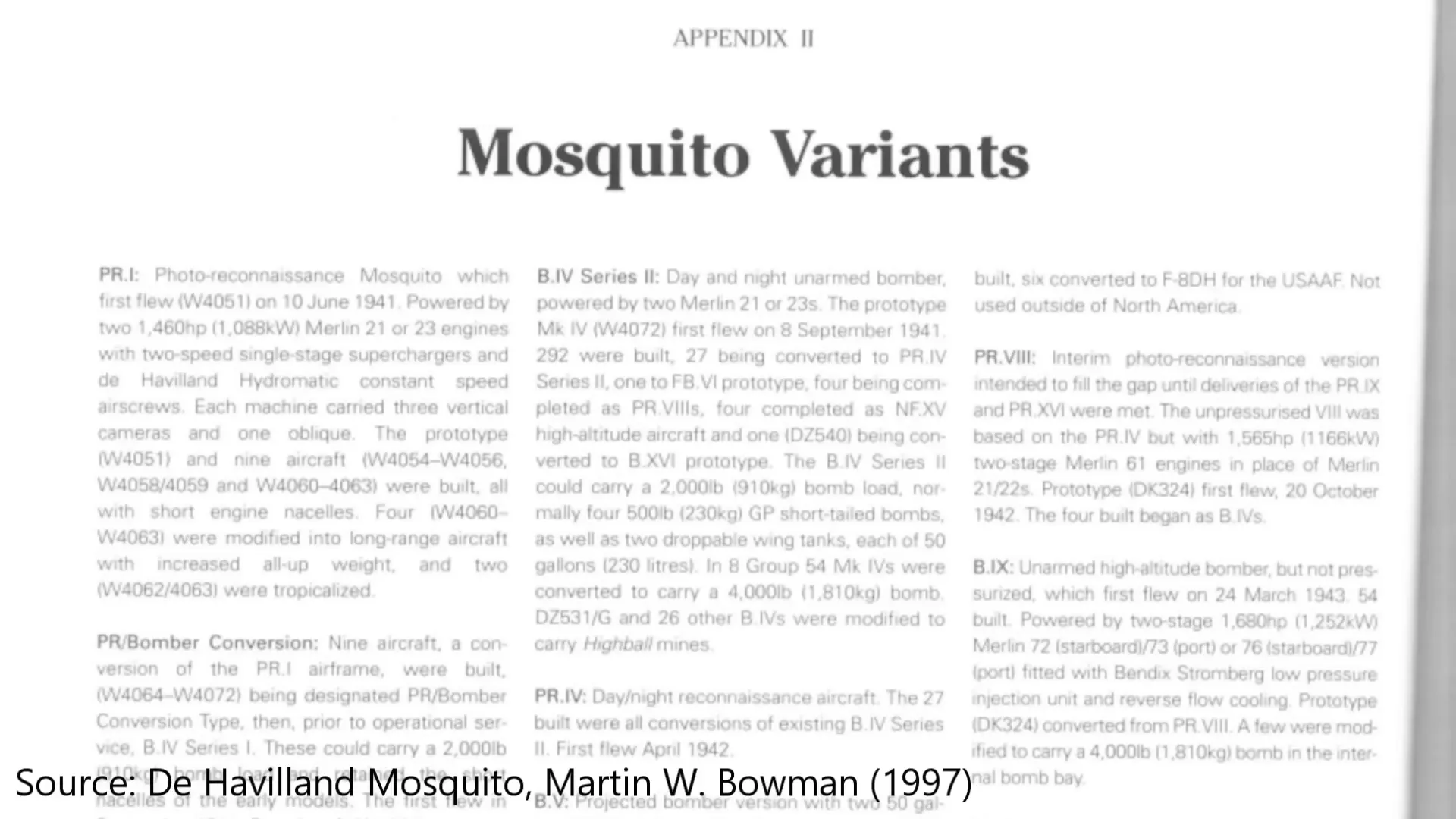

Variant Differences in the Mosquito

The Mosquito had several variants, including the B Mk IV, B Mk IX, and B Mk XVI. Each variant featured different engine configurations, which impacted speed, payload, and range. For instance, the later models, equipped with more powerful engines, could carry heavier bomb loads but also had increased empty weights, which affected fuel efficiency.

Operational Performance of Variants

The B Mk IV had a lighter design and was optimized for speed, making it suitable for quick strikes. In contrast, the B Mk XVI, with its enhanced engines, could carry more ordnance but required more careful planning regarding fuel and weight management. Thus, the choice of variant significantly affected mission success.

The Evolution of Bomb Load Capacities

Over time, the bomb load capacities of both the Mosquito and the B-17 evolved due to advancements in technology and combat needs.

Changes in Bomb Load for the B-17

The B-17’s design allowed for adaptations that increased its bomb load over time. Early models carried around 4,800 pounds, while later versions could handle over 13,000 pounds. These enhancements allowed the B-17 to take on more significant and varied missions, reinforcing its status as a heavy bomber.

Development of Mosquito’s Bomb Load Capabilities

Initially, the Mosquito was designed to carry a modest bomb load of 2,000 pounds. However, as the war progressed, modifications enabled some variants to carry up to 4,000 pounds. This evolution was critical as it allowed the Mosquito to engage in more significant bombing operations, albeit still limited compared to the B-17.

Statistical Analysis of Bomb Load Data

Analyzing bomb load data provides a clearer picture of each aircraft’s effectiveness in combat. The B-17’s operational statistics reveal consistent patterns in its bombing capabilities.

Interpreting the B-17 Bomb Load Statistics

Data from various missions indicate that the B-17 frequently dropped bomb loads averaging around 4,500 pounds. This consistency underscores its reliability as a heavy bomber. Additionally, the statistics show a variation in bomb loads based on mission type, with certain operations requiring heavier payloads.

Comparative Bomb Load Analysis of the Mosquito

In contrast, the Mosquito’s bomb load statistics reveal that while it could carry significant payloads, most missions involved lighter loads averaging around 2,000 pounds. The limited capacity, especially in earlier models, restricted its effectiveness in sustained bombing campaigns.

Operational Limitations of the Mosquito

Despite its advantages in speed and agility, the Mosquito faced several operational limitations that hindered its ability to replace the B-17.

Fuel Capacity Constraints

The Mosquito’s smaller fuel capacity restricted its operational range. While it could undertake quick strikes, sustained missions were challenging. The need for external drop tanks to extend its range often compromised its bomb load capabilities.

Vulnerability in High-Intensity Combat

In high-intensity combat scenarios, the Mosquito’s lack of defensive armament made it vulnerable. While its speed allowed for evasion, when intercepted, the lack of protection became a critical disadvantage compared to the heavily armed B-17.

Conclusion: Myth vs. Reality

The narrative that the Mosquito could match the B-17 in bomb load capabilities does not hold up under scrutiny. While both aircraft had their strengths, their differences in bomb load capacity, operational range, and tactical roles highlight the unique contributions each made to the Allied air campaign.

Final Thoughts on the Mosquito’s Role

Ultimately, the Mosquito was an exceptional aircraft for its intended role as a fast, low-level bomber and reconnaissance platform. However, it could not replace the B-17’s heavy bombing capabilities, which were essential for the strategic bombing campaigns of World War II.
